TRVexcellent for bulk delivery
TRV
excellent for bulk delivery
With the carrying capacity of 150 to 1100 pounds, TRV is excellent for bulk delivery. The robot does all the runners' jobs so that your staff has free time to focus on their primary tasks.
With the carrying capacity of 150 to 1100 pounds, TRV is excellent for bulk delivery. The robot does all the runners' jobs so that your staff has free time to focus on their primary tasks.
Why TRV
- Premium, reputable key components.
- Safety Certified key components used (i.e. CE/UL Certified LIDARS, Motor Controllers).
- Drives come with 20 Nm Powerful Passive Brakes for enhanced safety (10 Nm for Mini).
- 10 Years of AMR Product Development Experience incorporated into Mobile Navigation.
- Our Premium Series houses a "Parallel Safety Monitoring and Controlling Unit" in addition to our standard series' features, suitable for customers who prefer Enhanced Safety Features.
Applications
Suitable for any indoor bulk material transportation applications in logistics, automotive and manufacturing industries
Multi Story building delivery applications
Configurable for system integrator applications
click to learn more and watch me go
Mini
x

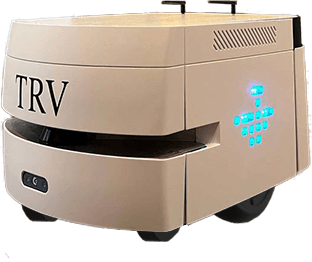

TRV Mini
Perfect for Challenging Enviroments
Perfect for Challenging Enviroments
TRV Mini is perfect for contactless delivery, disinfection, and communication. Can schedule deliveries or on demand. The robot does all the runners' jobs so that your staff has free time to focus on their primary tasks.
Payload - 150 lbs
Max Speed - 1.2 m/s
Run Time - 15 hours
Max Speed - 1.2 m/s
Run Time - 15 hours
Quick Specs
| Dimension (L x W x H): 26" x 20" x 16" |
| Payload: 150 lbs |
| Maximum Speed: 1.2 m/s |
| Material: Aluminum alloy chassis with ABS casing |
| Payload attachment: Automatic cart lifting or latching mechanism (Optional) |
| Navigation: Autonomous routing by LIDAR SLAM technology |
| Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1 |
| Drive wheels: Differential Drives (BLDC low noise motors), 2 wheels |
| Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation |
| Docking Station: 100 to 240 VAC, 50 to 60 Hz |
Max
x
TRV Max
Excellent for Bulk Delivery
Excellent for Bulk Delivery
TRV Max is excellent for bulk delivery. The robot does all the runners' jobs so that your staff has free time to focus on their primary tasks.
Payload - 450 lbs
Max Speed - 1.2 m/s
Run Time - 15 hours
Max Speed - 1.2 m/s
Run Time - 15 hours
Quick Specs
| Dimension (L x W x H): 32" x 27" x 15" |
| Payload: 450 lbs |
| Maximum Speed: 1.0 m/s |
| Material: Aluminum alloy chassis with AL casing |
| Payload attachment: Automatic cart lifting or latching mechanism (Optional) |
| Navigation: Autonomous routing by LIDAR SLAM technology |
| Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1 |
| Drive wheels: Differential Drives (BLDC low noise motors), 2 wheels |
| Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation |
| Docking Station: 100 to 240 VAC, 50 to 60 Hz |
Mega
x
TRV Mega
Heavy Transporter Robot
Heavy Transporter Robot
TRV Mega heavy transporter is capable of transporting upto 1000 lbs payload and comes with cart latching mechanism. TRV Mega is suitable for any indoor heavy payload applications i.e. Automotive, Logistics, Manufacturing industries material transportation applications.
Payload - 1100 lbs
Max Speed - 1.0 m/s
Run Time - 15 Hours
Max Speed - 1.0 m/s
Run Time - 15 Hours
Quick Specs
| Dimension (L x W x H): 37.8" x 25.6" x 11.8" |
| Payload: 1100 lbs |
| Maximum Speed: 1.0 m/s |
| Material: Aluminum alloy chassis with AL casing |
| Payload attachment: Automatic latching mechanism (optional) |
| Navigation: Autonomous routing by LIDAR SLAM technology |
| Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1 |
| Drive wheels: Differential Drives (BLDC low noise motors), 2 wheels |
| Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation |
| Docking Station: 100 to 240 VAC, 50 to 60 Hz |
Lifter
x

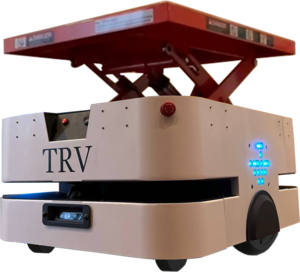

TRV Lifter
Brilliant for Bulk Delivery
Brilliant for Bulk Delivery
TRV Lifter is brilliant for bulk delivery. Automatically pick-up/drop-off payload, eliminates manpower in both pick-up and delivery locations. The robot does all the runners' jobs so that your staff has free time to focus on their primary tasks.
Payload - 450 lbs
Max Speed - 1.0 m/s
Run Time - 15 Hours
Max Speed - 1.0 m/s
Run Time - 15 Hours
Quick Specs
| Dimension (L x W x H): 32" x 27" x 16" |
| Payload: 350 lbs |
| Maximum Speed: 1.0 m/s |
| Material: Aluminum alloy chassis with AL casing |
| Payload attachment: Automatic cart lifting mechanism included |
| Navigation: Autonomous routing by LIDAR SLAM technology |
| Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1 |
| Drive wheels: Differential Drives (BLDC low noise motors), 2 wheels |
| Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation |
| Docking Station: 100 to 240 VAC, 50 to 60 Hz |
Fleet Management
x
Superior Fleet Management system for Multiple Robots
Tablet/computer based superior user interface software
Different models of Techmetics AMR products can work and communicate together on the Techmetics' advanced fleet management and elevator interface system (FMEIS)
FMEIS monitor allows to view all robots within a facility and monitor ongoing tasks
Product comes with Easy Support and troubleshooting through secured remote control (performed with facility permission)
Specifications
| Mini | Max | Mega | Lifter | |
| Dimension (L x W x H) | 26" x 20" x 16" | 32" x 27" x 15" | 37.8" x 25.6" x 11.8" | 32" x 27" x 16" |
| Payload | 150 lbs | 450 lbs | 1100 lbs | 350 lbs |
| Maximum Speed | 1.2 m/s | 1.0 m/s | 1.0 m/s | 1.0 m/s |
| Material | Aluminum alloy chassis with ABS casing | Aluminum alloy chassis with AL casing | ||
| Payload attachment | Automatic cart lifting or latching mechanism (Optional) | Automatic latching mechanism (optional) | Automatic cart lifting mechanism included | |
| Navigation | Autonomous routing by LIDAR SLAM technology | |||
| Safety Scanning LIDAR | Class 1 Safety Rated Laser, PLd safety per ISO 13849-1 | |||
| Drive wheels | Differential Drives (BLDC low noise motors), 2 wheels | |||
| Battery | LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation | |||
| Docking Station | 100 to 240 VAC, 50 to 60 Hz | |||
Mini Specifications
| Dimension (L x W x H): >26" x 20" x 16" |
| Payload: 150 lbs |
| Maximum Speed: 1.2 m/s |
| Material: Aluminum alloy chassis with ABS casing |
| Payload attachment: Automatic cart lifting or latching mechanism (Optional) |
| Navigation: Autonomous routing by LIDAR SLAM technology |
| Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1 |
| Drive wheels: Differential Drives (BLDC low noise motors), 2 wheels |
| Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation |
| Docking Station: 100 to 240 VAC, 50 to 60 Hz |
Max Specifications
| Dimension (L x W x H): 32" x 27" x 15" |
| Payload: 450 lbs |
| Maximum Speed: 1.0 m/s |
| Material: Aluminum alloy chassis with AL casing |
| Payload attachment: Automatic cart lifting or latching mechanism (Optional) |
| Navigation: Autonomous routing by LIDAR SLAM technology |
| Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1 |
| Drive wheels: Differential Drives (BLDC low noise motors), 2 wheels |
| Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation |
| Docking Station: 100 to 240 VAC, 50 to 60 Hz |
Mega Specifications
| Dimension (L x W x H): 37.8" x 25.6" x 11.8" |
| Payload: 1100 lbs |
| Maximum Speed: 1.0 m/s |
| Material: Aluminum alloy chassis with AL casing |
| Payload attachment: Automatic latching mechanism (optional) |
| Navigation: Autonomous routing by LIDAR SLAM technology |
| Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1 |
| Drive wheels: Differential Drives (BLDC low noise motors), 2 wheels |
| Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation |
| Docking Station: 100 to 240 VAC, 50 to 60 Hz |
Lifter Specifications
| Dimension (L x W x H): 32" x 27" x 16" |
| Payload: 350 lbs |
| Maximum Speed: 1.0 m/s |
| Material: Aluminum alloy chassis with AL casing |
| Payload attachment: Automatic cart lifting mechanism included |
| Navigation: Autonomous routing by LIDAR SLAM technology |
| Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1 |
| Drive wheels: Differential Drives (BLDC low noise motors), 2 wheels |
| Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation |
| Docking Station: 100 to 240 VAC, 50 to 60 Hz |
