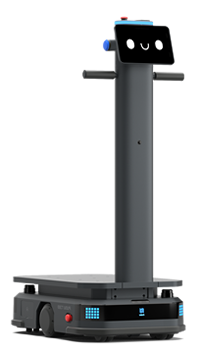

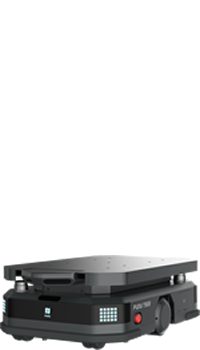

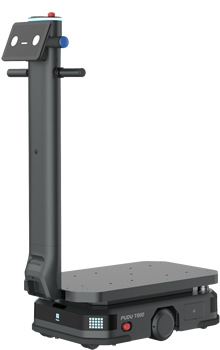

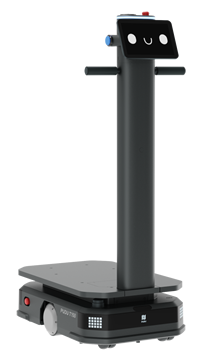

| T150 | T300 | T600 | T600 Underride | |
|---|---|---|---|---|
| Product Definition | Light-payload Industrial Delivery Robot | Industrial Delivery Robot | Heavy-payload Industrial Delivery Robot | Flexible & Efficient Industrial Delivery Platform |
| Dimensions | 32.8 x 19.7 x 53.1 in | 32.8 x 19.7 x 53.1 in | 37.8 x19.7 x 53.1 in | 33.3 x 19.7 x 10.0 in |
| Maximum load | 330.7 lbs | 661.4 lbs | 1322.8 lbs | 1322.8 lbs |
| Minimum Passability | 23.6 in | 23.6 in | 27.6 in | 25.6 in |
| Navigation Methods | VSLAM & LiDAR SLAM | LiDAR SLAM only | ||
| Scheduling Method | Distributed Scheduling | |||
| Positioning Accuracy | Routine: ± 2 in Precision Docking: ±1 0.4 in | |||
| Obstacle Negotiation Capability | 2 cm step climbing 3.5 cm gap crossing 5° slope traversal |
2 cm step climbing 3.5 cm gap crossing 5° slope traversal |
1 cm step climbing 3.5 cm gap crossing 5° slope traversal |
1 cm step climbing 3.5 cm gap crossing 5° slope traversal |
| Battery Life | 12h no-load 8h full-load |
12h no-load 6h full-load |
12h no-load 6h full-load |
12h no-load 6h full-load |
| Charging Time | 2h (0 to 90%) Charging Pile Wired Charging Manual Battery Replacement |
|||
| Travel Speed | 0.66 ∼ 3.94 ft/s | |||
| Main Functions | Delivery Cruise Lifting Power Assist Order-to-Person |
Delivery Cruise Lifting Following Power Assist Conveyor Towing Order-to-Person |
Delivery Cruise Lifting Following Power Assist Conveyor Towing Order-to-Person |
Delivery Cruise Lifting Conveyor Towing |
| IoT (Internet of Things) | Autonomous elevator access Gate / turnstile travers Pager Industrial touchscreen display PUDU link Bluetooth speaker |
Autonomous elevator access Gate / turnstile travers Pager Industrial touchscreen display PUDU link Bluetooth speaker Conveyor |
||
| Expandable Accessories | Standard rack Standard pallet rack |
Standard rack Standard pallet rack Towing Module Conveyor |
||
| Deployment Method | Propulsion Deployment | Propulsion Deployment Removable Temporary Columns |
||
| Screen Size | 10.1 in | na | ||
All technical data and dimensions are approximate values
