CC1
Cleaning robots offer the advantages of contactless and intelligent cleaning, especially when compared to manual services, presenting a rare strategic development opportunity in the commercial cleaning robot industry. Pudu's CC1 cleaning robot is designed to help the traditional cleaning industry meet the challenges of smart transformation.
CC1 is designed for a variety of cleaning scenarios and is capable of multiple functions, including scrubbing, sweeping, vacuuming, mopping, automatic water refilling and debris discharge, autonomous driving, auto elevator taking, e-gate and auto-gate passage, auto access control, and multi-floor operations. CC1 is equipped with a built-in roller brush, squeegee and removable dust vacuum that allows it to adapt to various floor types in buildings and residences, including hard floors and soft carpet.
Red Dot Award 2023
...Learn More
PUDU SLAM Navigation Solution
PUDU SLAM is a new SLAM solution based on Lidar, Camera, RGBD, IMU, Ultrasonic Radar, Encoder multi-sensor fusion. This solution can ensure that the robot can perform tasks more efficiently in a mixed environment.
Automatic Charging, Filling and Drainage Stations
charging station

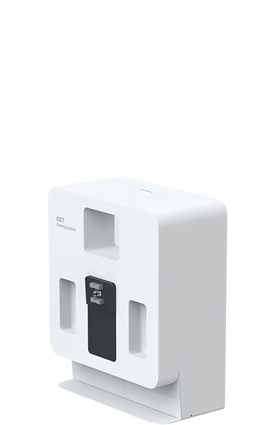

Charging Station
Supports auto charging and is primarily used for sweeping and vacuuming.
docking station

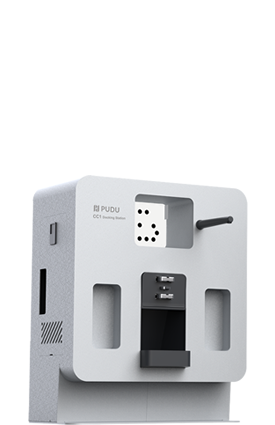

Docking Station
Supports automatic charging, water supply and drainage, and detergent addition. Requires a drain and water source.
workstation

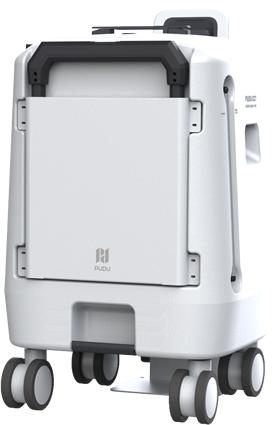

Mobile Water Station
Pair the mobile station with the docking station and there is no need for plumbing modifications. Supports automatic charging, water supply and drainage, and detergent addition
Click here to learn more
Quick Specs
Recovery Tank Volume:    3.96 gal
Fresh Tank Volume:    3.96 gal
Cleaning Mode:    Scrubbing, Sweeping, Vacuuming, Dust Mopping
Cleaning Work Noise:    <70dB
Operating Speed:    .66 f/s - 3.94 f/s
Maximum Battery Life:    9h
Run-time:    4 h - 8 h
Battery Capacity:    50 Ah
Charging Time:    <4 h
Operating Mode:    Auto and Manual
Robot Weight:    152.11 lbs
Screen Size:    10.1 inch LCD screen
Robot Diminsions:    26.1" x 22.36" x 26.85"
Enclosure Material:    PC + ABS
Navigation Method:    Integrated lidar and visual SLAM positioning
Min. Path Clearance:    27.56"
Max. Sumountable Height:    .78"
Max. Climbing Angle:    8°
Max. Surmountable Gap:    1.38"
Cleaning Width (with side brush):    19.69"
Operating System:    Android
Communication:    4g, Lora, WIFI, Bluetooth supported
Mobile App:    Supported
Auto Charging:    Supported (in conjuction with charging pile)
Operational Features:    Charging Pile, Workstation
Working Enviroment Temperature:    34°F to 104°F; RH ≤ 85%
Storage Enviroment Temperature:    -104°F to 149°F; RH ≤ 85%
Working Altitude:    less than 1.2 miles
Application Scope:    Terrazzo, marble, tile, exposy resin, sandstone, artificial stone, short-pile carpets, etc.
IP Rating:    IPX4
Operating Voltage:    DC 23V - 29.2V
Power Input:    AC100V - 240V, 50/60Hz
Power Output:    29.2V, 11A
