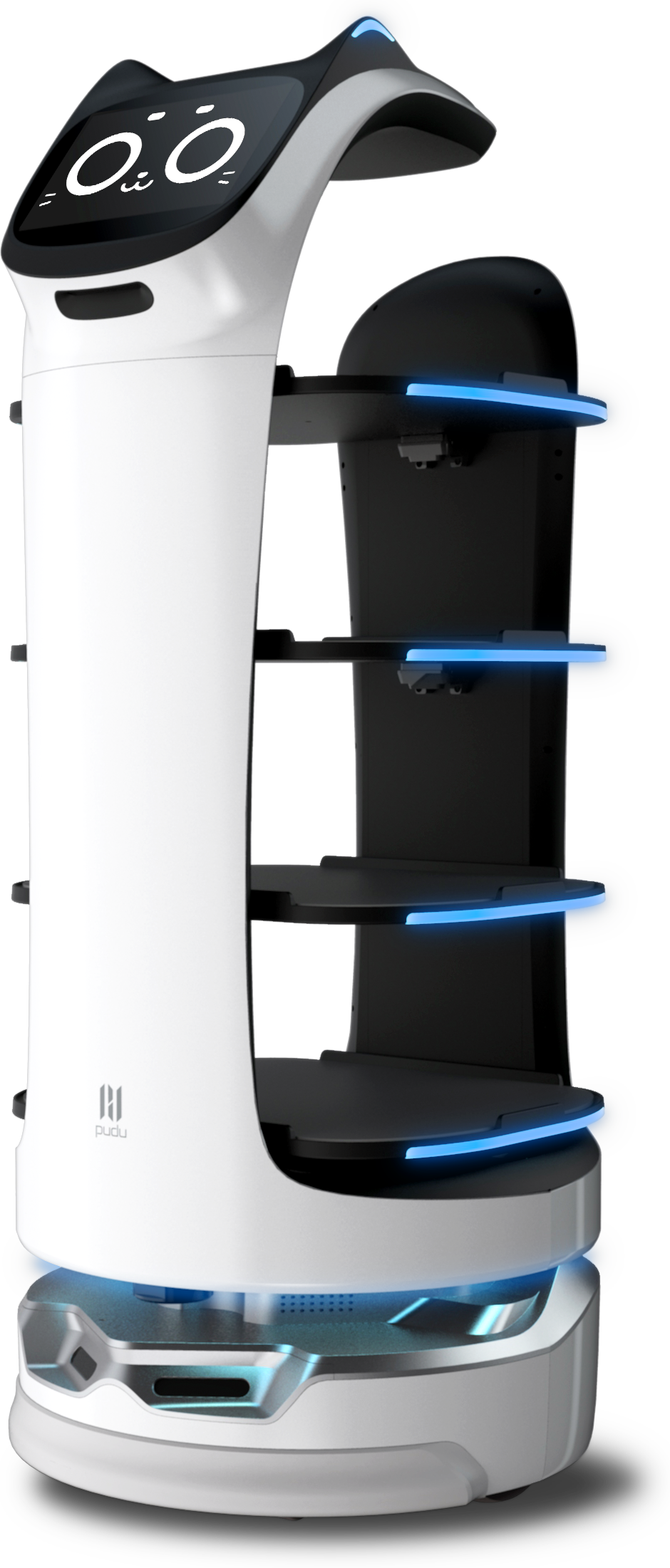

BellaBot
BellaBot, a premium delivery robot, at a competitive price. BellaBot inherits the outstanding characteristics of the previous generation, while being endowed with superior human-robot interaction capabilities. Featuring an innovative bionic design language, unique design style, multi-modal interaction and many other new functions. BellaBot provides users with an unprecedented food delivery robot experience.
Intelligent Multifunctional Delivery
Greeting Mode
BellaBot features a greeting mode in which it takes over reception and escorts guests to their table.
Delivery Mode
BellaBot delivers food to multiple tables at once.
Cruise Mode
BellaBot circulates along a predetermined path with self-service drinks and desserts and recommends them to customers by voice.
Birthday Mode
BellaBot delivers birthday treats or gifts to customers, accompanied by customized background music.
Dish-return Mode - Bussing
BellaBot collects dishes to be cleaned and delivers them to the dish-return spot or the dish-washing room.
Direct Mode
The robot performs one-way delivery.
3D Omnidirectional Obstacle Avoidance
In pursuit of higher safety, BellaBot is equipped with 3D sensors and a new modular chassis. It can stop at any angle and move away as soon as it encounters obstacles.
Exterior And Performance
Machine dimension:
22.3 x 21.2 x 50.8 in
Tray size:
16.2 x 19.7 in
Loading dimension:
15.2 x 18.9 in
Num of Trays:
4-layer tray, with a height of 9.0/7.9/7.9/7.1" (top to bottom)
Robot Weight:
125.7 lbs
Load Capacity:
Max 88 lbs (22 lbs/layer)
Power Adapter and Battery
Battery capacity:
25.2V/25.6Ah
Quick-release battery:
Power exchange technology allows for easy removal and replacement of the battery
Battery Life:
12-24H (Replaceable Battery)
Charging time:
4.5H
Movement Functions
Location positioning:
Support both marker and laser positioning
Minimum size of object for obstacle avoidance:
1.4 x 2.0 x 3.9"
Minimum clearance:
27.6"
Dispatching:
A maximum of 20 robots of the same version can be dispatched at the same time
